Strippit Machines & Tooling For-Sale!
This Page is for Machines & Tooling that Machine Technologies & Associates have For-Sale.
And for Our Customers to List Strippit Machines that THEY Want to Buy & Sell.
Please Call for Information on Listing Your Machine "FOR-SALE" Here!
Machine Technologies is pleased to offer this Strippit FC750,
which has been Rebuilt in our Own Shop. A brief Summery of its Specifications;
---   Very Compact Machine!   Frame, Table,  and  CNC Control
        are all in 1-Piece measuring only 7' x 14'
---   No Special Foundation is Needed!
       Just Set on your floor, and level the 4 corners.
---   22 Ton Punching-Capacity, up to 10 gage Steel
---   20 Station Turret,
       1 -- 2"x2" Notch-Station,  3 -- 3 1/2" Stations,  16 -- 1 1/4" Stations
---   2000 inch per minute table movement speed
---   180 Punches per minute on 1 inch centerlines
---   Also can Contour-Nibbles
        Large Circles, Curves, and Angles at 390 punches per minute!
---   Sheet Size is 30" x 40" ,  can handle sheets up to 38" x 100"
        with Progressive-Move & Short-Workclamps
---   Control is HECC80 with 24K of memory,
        Interfaced to a P.C. Computer for Downloading Part-Program files
---   Control alphanumeric readout Display shows X & Y Axis Table-Positions,
        Turret-Position,  Part-Program Code, Normal & Abnormal Machine Status
---   Will run on 240 / 480 3-Phase Power,
        or I can set-up for Single-Phase 240 volts for you Small Garage Shops

This page was last updated on: September 1, 2024
3 1/2"   to   1 1/4"   Punch  &  Die  Adaptors   For-Sale!
These are used to put   1 1/4"  Tools  in   3 1/2"  Stations.
This is the solution for those older machines without  Auto-Index stations.

4 Strippit #200300-100  1 1/4" Indexable die bases,  #200596-000 Accudex Index fixture, and  #200293-000 1 1/4" Alignment tool-set.
There is a index-ring on bottom of each die base.  You set it to degree you want with fixture,  then using alignment tool, set the upper turret bushing to match.

New prices for all this was over $3500 from Strippit.  Take it all for $700.00!
Please  Click-On  Button to the Left
to go to  Next-Page  with
More  Strippit Machines & Tooling for Sale!
Strippit
2" x 2"  Notch-Punch Holder
as was used in  Station #1
on most Older
Strippit Turret Machines
and some
Single-Station Punch Machines.

 We Have Several Available
And,  we have some
2"x2"  New  &  Used
Dies  &  Punches
in several different Clearances.

Strippit-Machine  &  HECC80-Control  Repair Parts
and
Strippit  HECC80 CNC  Machine Service
Get  YOUR  Machine  MODEL #   &   SERIAL #
BEFORE  You Call!

Phone  704-233-5229
A Unique Set of Tools
Brand-New Strippit,  and Very Rare,   #90692-000  3 1/2" Indexing Line-Up Tool.
This can be used to Line-Up a Tool Station,
and also Set-Up a Indexable Die Base, as It is  Etched in Degree Increments!

And a Good Used #90698-000  Indexable 3 1/2" Die Base.  This is How we Set Punch  & Dies to Angles on Machines Without Auto-Index.  We have More of these Bases Available.

These are used on  following Strippit Machines;  T-SAF,  FC75/30,  FC750,  FC1000/1,  FC1000/2,  FC1000/3,  FC1250/30/1500,  FC1250/45,  630R,  and 1000R.
Line-Up Tool Cost $1600 New  &  Die-Base $3500 New  =  $5100.
 Take Both for  $600.00!
Strippit  #200293-000  Index-Tool Set.
This can be used to Index
(Degree Line-Up)  a Turret Bushing to Match a Standard or
Indexable Die Base.    $185.00

Also Shown is a   #200300-100
Indexable 1 1/4" Die Base.

This is How we Set Punch & Dies to Angles on Older Machines without Auto-Index.  These are used on  following Strippit Machines;  T-SAF,   FC75/30,  630R,  FC750,  FC750/2,  FC1000/1, FC1000/2,  FC1000/3,  1000R, FC1250/30/1500,   FC1250/45.

Good Used  #200300-000
Indexable  1 1/4" Die Base.

These Are the  Better  -000 Versions
that  are Etched with Degrees.

The  -100 Version
does  Not have Degree Etching.

This is How we Set Punch & Dies to Angles on Machines without Auto-Index.
These are used on Strippit Machines;  T-SAF,  FC75/30,  FC750,  FC750/2,  FC1000/1,  FC1000/2,  FC1000/3,  FC1250/30/1500,  FC1250/45,  630R,  & 1000R.

These Cost  $534.00 Each New,  BUT
I have these Last 3 Available
at only  $220 each.

 Strippit #200292-000    1 1/4" Tool   Line-Up Tool
for  Single-Station  Strippit Machines,
Such As   Custom 18/30's  &  Super 30/30's

For  1 1/4"-Stations,  The Hard-To-Find   Strippit and Wilson
1 1/4" Drop-In Punch-Holders  for  1/2"--Shank Punches
and with Included  Head-Nut
and
1 1/4" Drop-In Punch-Holders  for  5/8"--Shank Punches
 and with Included   Head-Nut

These all go into  Standard   1 1/4" Stations
on  Single-Station Machines  and in  Turret-Machines

The Perfect Way to use your  1/2"  &  5/8"  Shank-Diameter  Tooling!
Good Used
0,  90,  180,  270  Degree
4-Way 1 1/4" Die Holders

Strippit #91561-000
New-Cost
is Over $300 Each!
We have a few at
$75.00 each with 2 New
Vlier Pins Installed.

Good-Used  Strippit #83603-000  Standard 0 & 270  (0 & 90)  Degree-Slot 1 1/4" Die Holders.
These are  The Standard Die Holders that came in all Strippit Turret Machines for Years.
With  2 Brand-New Vlier Pins Installed  that Lock-In the Die.
Good Used
0  &  45  &  270  &  315 Degree
1 1/4"  Die Holders

Note!  On All Holders  &  Bushings
Strippit  Counts-Degrees
Clock-Wise  from the Front!

Strippit  #91562-000
New-Cost is Over $300 Each!
But we have a few left at
$80.00 each  with
2 New Vlier Pins Installed.

We also have Brand-New
#100230-200  Matching
0  &  45  &  270  &  315 Degree
1 1/4" Turret Bushings at $150.00

Good Used
0  &  135  &  225  &  270 Degree
1 1/4"  Bushings.
In Other Words,
these are   0,  90,
and  45 Degrees  Both-Ways

Strippit #100230-300
New-Cost is  Over  $300 Each.
But we have 2 of these left
at  $80.00 each

We Stock Thousands of New Machine & Control Repair Parts.

But,  From Time to Time,  We Scrap some Machines and so we also have some
"Heavy"  Repair Parts from these Used Machines.
Parts like;  Crankshafts,  Clutches,  Brakes,  Turret Gearboxes,  Turret Sub-Assemblies, Flywheels,  Pitman's,  Rams,  Ram-Housings,  Bearing Quills,  Machined Castings,  Etc.
Call us on what you need!
3 1/2"
Alignment Tool Sets

Machine Technologies is pleased to offer this  Strippit  FC1250/30/1500  which we Installed in a Southern California Shop,  and has been  Exceptionally Well Maintained  by a Smart Customer.
A Brief Summery of its Specifications;
---   No Special Foundation is Needed!   Has Steel-Plates to Lag-Down to Your Floor.
---   30 Ton Punching-Capacity,  up to 3/8 Inch Steel.
---   20 Station Turret,  1 --- 2"x2" Notch-Station,  3 --- 3 1/2"   &   16 --- 1 1/4" Stations.
---   Up to 2000 inch per minute table movement speed.
---   180 Punches per minute on 1 inch centerlines.
---   Contour-Nibbles Large Circles,  Curves, and  Angles at 390 punches per minute!
---   Sheet Size is  50" x  60",  can handle Sheets up to 60" x  120" with  Progressive-Move & Short-Workclamps
---   Control is  HECC80/1  with 24K of Memory,  Interfaced to a  P.C. Computer
       ,which is Included,  for Downloading Part-Program Files.
---   Control Alphanumeric Readout Display shows  X & Y Axis Table-Positions,
       Turret-Position,  Part-Program Code,  Normal & Abnormal Machine Status.
---   Runs on  240 or 480  A.C. Volt  3-Phase Power.

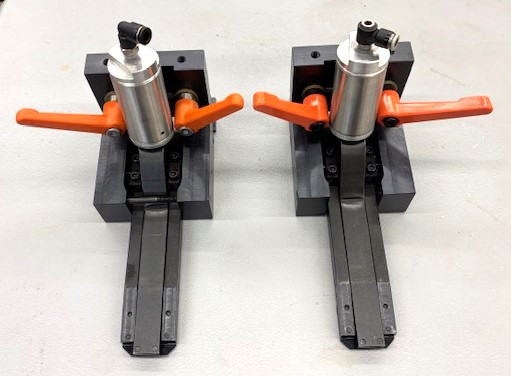

We have available this Pair of Official Strippit  Short-Workclamps
Shown Above,  for  "S"  &  "M"  Type  Strippit Machines,
Like the Following Strippit Machine Models;
  ---  1000S                       ---  1250S                         ---  1250M
  ---  1000SX                     ---  1250SX                      ---  1250MXP/30
  ---  1000SXP                   ---  1250SXP
  ---  1000SXP/30              ---  1250SXP/30

These Short-Workclamps will Move Your Part-Sheet Back about  10 Inches in Y-Axis allowing you to run  48" Wide-Sheets on the  1000 Machines
and  60" Wide-Sheets on the  1250 Machines.
You just Slide Workclamps onto Machine & Hook-Up Air Hoses to Install.
And  Remember
What Your Mom Always Told You!

"Don't Give
Machine Guns To Monkeys!"


Strippit   .25"  x  3"   Progressive Ribbing-Tool
Used to put Stiffing-Ribs into Thin Sheetmetal Parts
to make more Rigid without having to use thicker-metal.

3 1/2 Inch  Stripping-Guide  Punch-Holder  Assemblies

In North America,  Over Many Years Past,
Strippit,   Wilson Tool,   Mate Tooling,   C.E.Tooling,   MAS,   Thor Tool,   and  Others,
Have made Dozens of Different Versions of
3 1/2" Stripping-Guide  Punch-Holder  Assemblies.
Of these Companies,  Only  Wilson Tool  and  Mate Tooling  are now active.
Both make Excellent  3 1/2" Stripping-Guide Punch-Holder Assemblies,  But
NEW  Holders Cost about  $2200.00 each  without  any  Punch  &  Die  &  Stripper-Plate.
New is Better,   But  if your Application does not require the  Newest  &  Very Best,
then  We Offer these  Good Used  3 1/2" Stripping-Guide  Punch-Holder  Assemblies
for a  Fraction  of the  New Holder Cost  and  you get whatever
Punch  &  Die  &  Stripper-Plate  that is in it,  as a  Free-Extra!

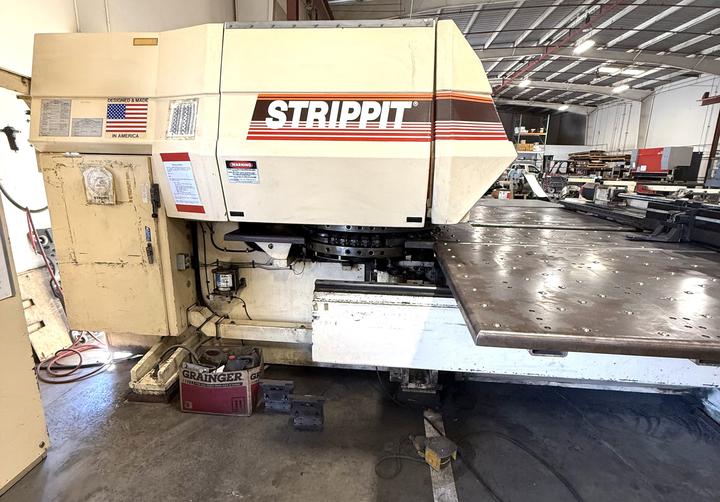

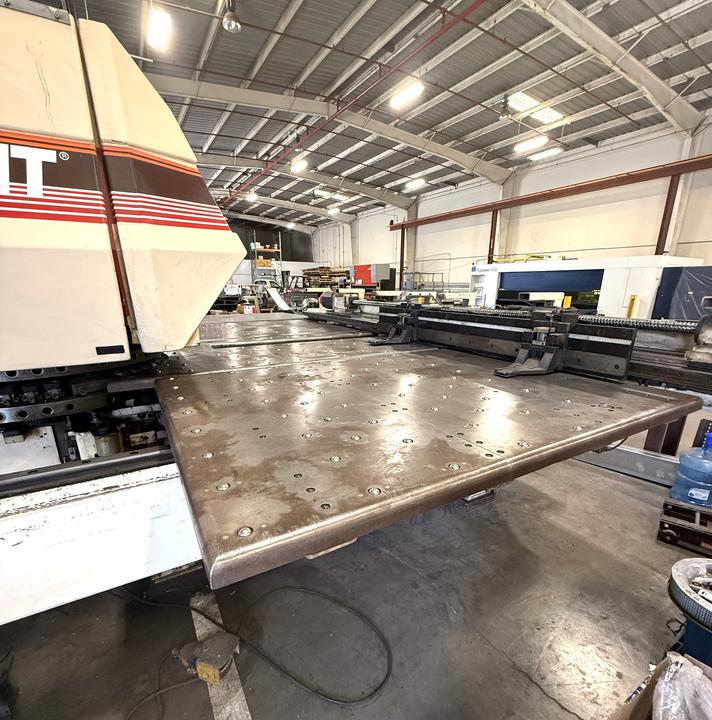

STRIPPIT 1250S  CNC Turret Punch Machine  For-Sale
-- YEAR OF MANUFACTURE:  1996
-- MAXIMUM SHEET SIZE:   50” x  80”,     50” x 160"   with Progressive-Move:
-- PUNCH TONNAGE:   33 TONS,    MAXIMUM MATERIAL:   .375” MILD STEEL
-- HOLE CAPACITY:   1.623"  DIA  IN  .25"  MILD STEEL,    3.500"  DIA IN 10 GAGE MILD STEEL
-- 33 STATION TURRET CONFIGURADED AS:    27 --  1 1/4"  STATIONS,
                4 --  STANDARD  3 1/2"  STATIONS,       2 --  LARGE  3 1/2"  AUTO-INDEX  STATIONS
-- HEAVY-DUTY MACHINE WEIGHTS  30,000 POUNDS
-- Reliable  Fanuc OP  CNC  Control
-- INCLUDES  1 WEEK INSTALLATION  AND  TRAINING    and    30 DAY WARRENTY
  This is a Clean Lightly Used Machine,  Look at Machine Covers Around the Turret Area.
  Normally,  you See a Lot of Scratches from Heavy-Use  &  Careless Operators Hitting Machine
  Covers with Part-Sheets as they Load & Unload Machine.    Not this Machine.
  I have always considered the  S-Machines to be The Best  Machine Strippit Ever Built.
  See More about  S-Machines at:   Machine Photo Gallery

  PRICE FOR  1250S  MACHINE  &  INSTALLATION  &  TRAINING  &  WARRENTY   IS  $59,900.
  THOUSANDS LESS THAN OTHER  DEALERS  WITHOUT  INSTALLATION  &  WARRENTY!

Strippit  8-Station Multitool
Turns Your Auto-Index Station into a 8-Station Mini-Turret.
In  Brand-New  Un-Used Condition

STRIPPIT  1000SX  Turret-Punch  LaserTool
-- Year of Manufacture:  1990
-- Maximum Sheet Size:   40” x  48”
-- Maximum Sheet Size with Progressive-Move:  40” x 120"
-- Maximum Sheet Size,  Prog-Move & Short Workclamps:  50" x 120"
-- Maximum Material:   .250” mild steel,   Punch-Tonnage:   33 Tons
-- Hole Capacity:  1.623" in .250" mild steel,  3.500" in 10 gage mild steel
-- 2000 Watt  Rofin-Sinar Laser, Chiller & Exhaust.  Laser can cut up .250" Steel  &  .125" Aluminum
-- 24  STATION TURRET CONFIGURADED AS;
       18 --  1 1/4"    &    4 --   3 1/2"  STATIONS    &    2 --  LARGE  3 1/2"  AUTO-INDEX  STATIONS
--  And  8-Station Multi-Tool is Included for  Total of  31 Punch Stations
-- Heavy-Duty Machine weights  29,000 Pounds
-- Reliable  Fanuc OP  CNC  Control.  Machine works best on  480 volts AC Power
-- INCLUDES  1 WEEK  INSTALLATION  AND  TRAINING
  I have always considered the S-Machines to be The Best  Machines Strippit Ever Built.
  See More about  S-Machines at:   Machine Photo Gallery
  PRICE FOR  HEAVY-DUTY  1000SX  Punch  LaserTool  MACHINE  &  INSTALLATION  &  TRAINING
  IS  $32,000 !    WHICH IS THOUSANDS LESS THAN OTHER  DEALERS  WITHOUT  INSTALLATION!

Very-Rare  &  Hard-To-Find
 Alignment Tool Set  For  Amada  &  Strippit
"D"  3 1/2"  Thick-Turret  Long-Tool  Turret Stations

"Click-ON"  Alignment Procedures Below for Use of Alignment Tools!
STRIPPIT  1250XP  Turret-Punch  For-Sale
-- Year of Manufacture:  1994
-- Maximum Sheet Size:   50” x  50”
-- Maximum Sheet Size with Progressive-Move:   50” x 120"
-- Maximum Sheet Size,  Prog-Move & Short Workclamps:   60" x 120"
-- Maximum Punch-Tonnage:   23 Tons
-- Maximum Material:   .250” mild steel
-- Hole Capacity:  1.2" in .250" mild steel,  3.500" in .074" mild steel
-- 20  STATION TURRET CONFIGURADED AS;
            16  --  1 1/4"  STATIONS
              2  --  STANDARD  3 1/2"  STATIONS
              2  --  LARGE  3 1/2"  AUTO-INDEX  STATIONS
-- Heavy-Duty Machine weights  23,000 Pounds
-- Machine works best on  460  /  480 volts AC Power
-- STRIPPIT  MAC-PC  CNC  Control
-- Machine has been Professionally Disassembled and
    is Stored in a New Jersey Warehouse
-- Customer is Responsible for Machine Rigging  &  Trucking
-- Price for   1250XP  Turret Punch  Machine is  $12,000.00    OR
-- Price for   1250XP  Turret Punch  Machine
   AND  1  Week Machine  INSTALLATION  & TRAINING  is  $15,000.00
STRIPPIT Global 1225/20 Turret-Punch For-Sale
--- Year of Manufacture: 2001
--- Machine is in Very Good Condition
--- Huge Sheet Size! Maximum Standard Sheet Size: 50” x 100
--- Maximum Sheet Size with Progressive-Move: 50” x 196"
--- Maximum Sheet Size, Prog-Move & Short Workclamps: 60" x 196"
--- Very Fast! 350 hits per minute on 1.0" Centers
--- 900 hits per minute on .062" Centers
--- Finished Part Accuracy .004"
--- Maximum Punch-Tonnage: 23 Tons
--- Hole Capacity: 1.169" in .250" mild steel, 3.500" in .074" mild steel
--- 30 STATION TURRET, Standard Strippit Thin-Turret Tooling Type,
     Configured as 26 -- 1 1/4" Stations, 4 -- 3 1/2" Auto-Index Stations
--- 7 Cabinets Full Of Tooling! Cabinets are Not Included.
--- Reliable FANUC 180i CNC Control
--- Heavy-Duty Machine Weights 36,400 Pounds
--- Machine Works Best on 460 / 480 volts AC Power
--- Customer is Responsible for Machine Rigging & Trucking
--- Professional INSTALLATION and TRAINING is Available
--- Global 1225/20 CNC Turret Punch Machine & All Tooling $119,900.00
Strippit   Custom 18/30
Manual Punch Machine For-Sale
---   30 Ton  Punch Capacity
---   18" Throat  x  30" Length  Part Size,
       Longer Parts  using  Support Table
---   Has  3 1/2"  Swing-Arm  Tool-Holder
---   Has  1 1/4"  Swing-Arm  Tool-Holder
---   Has  3 1/2"  to  1 1/4"  Die Adaptor
---   Uses  Standard Thin-Tooling
---   3  Finger-Stops  Included,  More are Available
---   Punch-Head  Rebuilt by Machine Technologies
---   Drive-Belts & Punch-Control Relays  Replaced
---   Operation  &  Maintenance  Manual  Included
---   Machine can use  220 or 440  Volt A.C.  3-Phase
---   Small  Footprint,  Only  88" Wide  x  76" Deep
---   Machine Weight  is  3900 Pounds
---   Machine is on  4" x  6" Timbers
---   3  Mounting-Feet  Included
---   Price  for  Machine  is  $5,300
STRIPPIT 1250S For-Sale
---- MAXIMUM SHEET SIZE: 50" x 80" and 160" x 50" with Progressive-Move
---- PUNCH TONNAGE 33 TONS, MAXIMUM MATERIAL .375" MILD STEEL
---- 33 STATION TURRET CONFIGURADED AS: 27 -- 1 1/4" STATIONS,
---- 3 - STANDARD 3 1/2" STATIONS, 3 -- LARGE 3 1/2" AUTO-INDEX STATIONS
---- Easy Install on Included Mounting-Pads, No Special Foundation needed!
---- Hydraulic Clutch & Brake Unit, Machine uses almost No Compressed Air!
---- Reliable Fanuc OP CNC Control

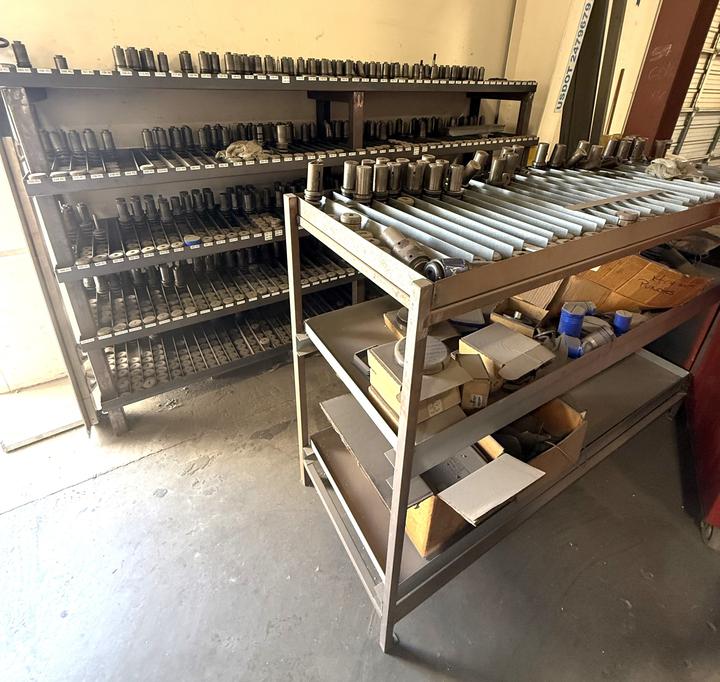

---- PRICED FOR A QUICK-SALE! THIS HEAVY-DUTY 1250S MACHINE is ONLY $25,000!
---- INSTALLATION and TRAINING is Available.
---- S-Machines are Best Machine Strippit Ever Built, See S-Machines at Machine Photo Gallery
New   1 1/4" Turret Bushings
Strippit   #100230-000  is their
Standard    0  &  270  Degree
(Backwards  0  &  90 Degree)  1 1/4" Bushings

We  Add  Plus  &  Minus  45 Degree Slots
on Our Bushings to give you
0,  45,  270,  &  315  Degree Slots
Strippit Manufactured these
1 1/4" Bushings in  2  Different
Top-Flange  Widths   2.375"  &   2.437"
Measure Your Bushings Top!
The  2.375"  Wide Top-Flange Bushing
is the Most Common Type

Strippit Super 30/30 Manual Punch Machine For-Sale
---- 30 Ton Punch capacity
---- 30" Throat x 30" Length Part Size, Longer with Support Table
---- Has 1 1/4" Swing-Arm Tool-Holder and 1 1/4" Die Adaptor
---- Uses Standard Thin-Tooling. Lots of Tooling and Tooling Cabinet Included!
---- 2 Finger-Stops Included, More are Available. Operation & Maintenance Manual Included.
---- Machine can use 220 or 440 Volt A.C. Power. Spare Motor Included.
---- Machine Weight is 6500 Pounds and is located in Leesburg, VA
---- Price for Machine and all Tooling with Tooling Cabinet and Tool Sharpener is Only $2,300!

CALL  Mitch Piper  at  703-777-6301 To Make Your  Best-Deal!

Alignment Tool Set  For  Amada  &  Strippit
3 1/2"  Thin-Turret  Tool Turret Stations

"Click-ON"  Alignment Procedures Below
for  Proper-Use of Alignment Tools!

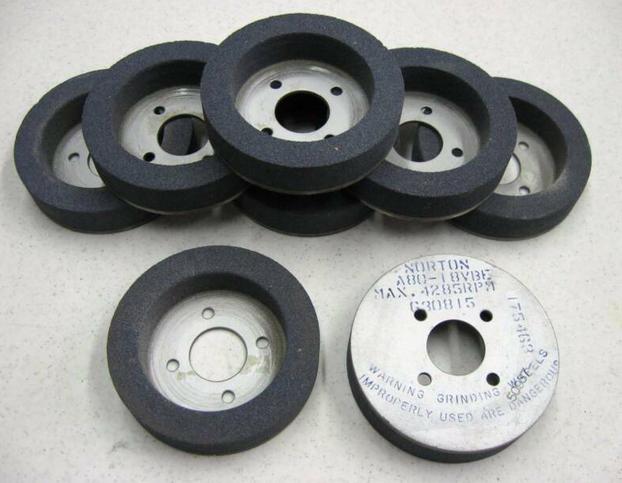

Grinding-Wheels for Strippit Tool Sharpener Machine

If you have a  Strippit  #85010-000  or  #72150-000  Punch & Die Tool Sharpener Machine
Like Shown Above,
you will need  New  Grinding Wheels  from Time to Time.

Unfortunately,  Strippit now Sells Only Crappy-Imported Wheels
that have  Less Abrasive-Material  than  The Original Wheels
and  use a  Very Weak Binder-Glue,  so they are  "Soft"  and  "Wear-Out"  Very Fast!

Machine Technologies  has a Supply of
The Original  #12359-000  Grinding Wheels  In-Stock!
If you want a  Top-Quality  Grinder Wheel  for Your
Strippit Tool Sharpener Machine,   We Are The-Only-Source!    Call  704-233-5229

NEW Grinding-Wheels
for  Strippit Tool Sharpener Machine


Like-New  Wilson-Tool
New-Style  Series-90  Special  3 1/2 Inch
Stripping-Guide Punch-Holder Assembly.

This Type of Special Holder takes Special
Wilson Tools like this 42-Hole Perf Punch
that is Bolted to Bottom of Punch-Driver.

This Does NOT take
Standard 3 1/2" Punches,
but  is Made to take
Any  Special Wilson Punch Tool.

Newer  Strippit  Quick-Release  3 1/2" Stripping-Guide Punch Holder Assembly
with  No-Tools  Stripper-Plate Release!
Just  Push-Down Button  &  Twist  to  Release  Retaining-Ring  &  Stripper-Plate!
With  1/4" x 2" Punch  &  +.012" Die  and  Stripper-Plate.
Wilson  4"  x  1"  Louver Tool  Set In  New Never-Used Condition!!!
Wilson   Series-80   3 1/2 Inch  Stripping-Guide  Punch-Holder  Assembly
with  1/4" x 3" Punch  &  +.010" Die  and  Stripper-Plate!
Older Strippit  3 1/2" Stripping-Guide Punch Holder Assembly
with  1.380" Round Punch,  1.399" Die,  and  Stripper-Plate
Older Strippit  3 1/2" Stripping-Guide Punch Holder Assembly
with  1.875" Round Punch,  1.893" Die,  and  Stripper-Plate
Older Strippit  3 1/2" Stripping-Guide Punch Holder Assembly
with  2.250" Round Punch,  Die,  and  Stripper-Plate
