More Strippit Machine Repair Parts
We Specialize In Strippit HECC80 Electronic Control & Machine Repair Parts.
But We Do Get-In Some Miscellaneous Machine Parts for Newer Machines with
Fanuc and PC-Controls. Here are some of these Parts that are Available.
If You See Something You Need, Get-It-Quick, as these may be One-Time Deals!
Note, There Are Many New Items Added-On To Bottom Of This Page!
#802494-000 Accumulator Bladder.
Note, We Can Special Order These!
#802485-00 Hydraulic Filter
#119490-000 Ballscrew
Axis Bumper
#801987-000 1/2" Air-Oiler
#801986-000 1/2" Air-Filter
#802501-000 Hydraulic Rotary-Seal.
Note, See Info & Photos on
New-Style Rotary-Seal Below!
#802495-000 Vickers
Hydraulic Valve
#802495-000 Stilson Vac-Loc Block
#800480-000
Air Cylinder for
--- Auto-Index Lock
--- Side-Gage Pin
#803240-000 Workclamp
Air Cylinder
#800486-000
Air Cylinder for Machines that use 2-Cylinders for Each Turret Shotpin
Proximity
Sensor Switches
#803840-100
#800259-000
#801608-000
# 18576-000
#803214-000
#801051-000
# 18576-000
#800503-000
#802493-000
#710142-000
#801608-000
# 24696-000
#803432-000
#801721-000
# 18847-000
#100603-000
#803724-000
# 19940-000
#1000391-000
Loader / Unloader
Vacuum Cups
#107808-100
3 1/2" Tool Lifter
# ???
3 1/2" Tool Lifter
#119711-000
Auto-Index
Tool Lifter
Many Special
Oil
&
Grease
Seals
This page was last updated: May 19, 2025
Micron #45-307-526-1830
Rotary-Switch Assembly
which is
Strippit #802029-000
And is
Used on the
Auto-Index Turret Stations
Above is Strippit Part Number #107727-100 Auto-Index Coupling.
2 are Used (1 on Upper-Turret & 1 on Lower-Turret)
to Engage A/I Gearboxes for Auto-Index Turret Stations.
We have these Special #107727-100 Couplings In-Stock!
Strippit FC1000R Parts
I have a Customer that had a FC1000R Machine with Strippit's Crappy Apple MAC PC Control. He had so much trouble with this "Control", he finally paid Strippit to do their Fanuc Control Retrofit that they offer.
Strippit "Keeps" the Old PC Control so they can resell the Boards in it to other "R" Customers so they can make Money off of you in 2 ways.
In Strippit's Defense, this Customer is Happy with the Fanuc Control Retrofit, so far, and feels that Strippit did a Good Job of doing this Retrofit.
Customer also had a few Spare Parts that Strippit did not get, so we will offer them to you here.
Servo Drive for X or Y Axis.
Reliance Electric / Electro-Craft
Model #DDM-030 Part #9101-1396
This Drive comes with
-- Software Set-Up Disks,
-- Software PC Download Cable
-- 500 page User Manual.
Murr Elektronik Power Supply
MNG. 10-230/24
Input 230 VAC
Output 24 VDC @ 10 Amp.
Baldor 3-Phase Turret Drive Motor
2 HP
208 / 230 / 460 VAC
1725 RPM
Sold!
Sold!
Strippit Part #802502-000
New Industrial #210415
Disk-Pack Set
(6 Friction & 5 Steel-Spacer)
This Pac Can Used on
Either of the
Clutch-Side or Brake-Side of
Strippit FC1000R Machines's
Hydraulic #211535 Clutch/Brake Unit.
Can Also Used on
Brake-Side of Strippit
FC1000S
FC1250S
FC1000SXP
FC1250SXP
FC1250M
Machine's Hydraulic
#211945 Clutch/Brake Unit
Strippit Part #802503-000
New Industrial #210410
Disk-Pack Set
(8 Friction & 7 Steel-Spacer)
Used on
Clutch-Side of Strippit
FC1000S
FC1250S
FC1000SXP
FC1250SXP
FC1250M
Machine's
Hydraulic #211945 Clutch/Brake Unit
Grinding Wheels
If you have a Strippit #85010-000 or #72150-000 Tool-Sharpener Machine,
like Shown Above,
Then you will Need New Grinding Wheels from Time to Time.
Unfortunately, Strippit now Sells Only Crappy Imported Wheels
that have Less Abrasive-Material than Original Wheels,
and use a Very Poor Binder-Glue,
so they are "Soft" And "Wear Out" Very Fast!
We Now Supply these Special-Size
Original #12359-000 Grinding Wheels
If you want a Top-Quality Grinder Wheel for your Strippit Tool Sharpener,
Give Us a Call!
We are The-Only-Source for these Special-Size Grinding Wheels
Sold!
Sold!
Special Fanuc Control Parts
Does the Keyboard Overlay on your Fanuc OP Control look like One Above?
Then You Need to Replace It! Why? Two Reasons;
1 -- The Operator or Maintenance Technician could easily Press Wrong Key,
Causing loss or Corruption of your Part Programs. Or Worse, Loss of a
Control Parameter, in which case Machine would NOT Run until Repaired!
2 -- Oil & Dirt can Enter Control causing Failure of Expensive
Keyboard and Other Control Parts.
Below is Picture of Same Fanuc Control, after Replacement with New
Special Strippit-Type Fanuc OP Overlay. We have this Special Part In-Stock!
Did Your Knuckle-Head Fork-Lift Operator Run into Your Machine? Again?
Then you better Fix the Servo Motor-End before CNC Control
"Loses Feedback Position" and Axis "Runs Away" which could Damage Servo Motor, Servo Drive, and Ballscrew. Not to Mention, a Big Safety Hazard as Someone could get Hurt Badly if Caught in the "Runaway"!
This particular Fanuc Servo Motor simply needs Motor End-Cap Replaced and Feedback Cable Connectors Remounted on New Cap.
New Motor Caps come in Several Different Sizes. To get Correct Cap,
we will Need Data off of Motor I.D. Plate on Side of Damaged Motor.
We Also Have
7-Key "Softkey" Overlay for the "SoftKey Keyboard"
which is Located Under CRT-Monitor Display.
NOTE! We have ONLY 1 Set Left, So Act Fast!
#802501-000
Hydraulic Clutch & Brake QRV Rotary-Valve
In Late 1980's and most of 1990's, Strippit Switched from Air Clutch & Brakes on their Mechanical Press-Drive CNC Machines, to using a Combination Hydraulic Clutch & Brake Assembly.
1 -- Had Drip Catch-Ring Inside-Diameter Hole Opened-Up on a Lathe, so that
Rotary-Valve could Not Touch it.
2 -- Scrapped away most of old RTV.
3 -- Installed New-Style Rotary-Valve.
Note, when Installing Valve, Very Carefully install Hydraulic Hose Fitting on Valve Before Mounting on Machine. This is to Prevent Excessive Side-Thrust on Valve which can Permanently Damage it! New-Style Valve does Not have Grease Fittings like Old Valve.
Real Problem with This Machine is
Crankshaft Bearings are Worn-Out which allows Crankshaft to Sag Down from Original Position and will Break Parts & Leak oil until Pressdrive is Rebuilt !
This is The Problem with ALL R-Type Machines as Cheap-Ass Strippit
Grease System DOES NOT WORK!
R & XP Machine Ballscrew Couplings
In Early 1980's, Strippit Solved a Persistent Machine Problem with Keyed-Ballscrew Couplings by Upgrading to New Keyless-Couplings which did Not get Sloppy Loose Keys, and Fall-Apart.
In 1990, Strippit Introduced the R & XP Machines. To make Machines Cheaper, Strippit Stupidly went Backwards to Old Keyed-Couplings again, and "Duh!", Same Old Problems came Back.
If you have Loose, Broken, Falling-Apart Ballscrew Couplings causing Tolerance Problems or Worse, Replace it with Our Keyless-Coupling, which has 2 Advantages;
1 -- It has a Higher Tork-Rating than Original Coupling, making it Much more Durable.
2 -- It Clamps onto Motor & Ballscrew Shafts, even if Shafts are "Less than Perfect"
from Damage caused by Old Coupling.
Just Clean-Up any Burrs & Rough-Spots on Shafts with a Flat-File, Slide Coupling On Shafts,
Center Coupling Between Shafts, and Tighten Lock-Collars at each end.
No More Keys to Fit & Install. No more Keys to Rock Back & Forth and get Loose.
There are Many Misprint-Mistakes in Strippit's Part Manuals. In 1 "R-Machine" Parts Manual, this Same X & Y Axis Ballscrew Coupling is Listed as #120823-000, #120832-000, and #120382-000 !
To make Sure you get Correct Coupling, Measure Both Your Motor & Ballscrew Shafts.
Most of these Machines have .750" Motor-Shaft and .718" Ballscrew-Shaft Diameters,
and that is the Coupling we Stock, though we can Make any Coupling you might want.
Below Photo, New Keyless-Coupling on Left, Old Keyed-Coupling on Right.
Especially on R-Type Machines, Clutch-Brake Assembly and Rotary Valves had a Tendency to Leak Hydraulic Fluid. Rather than Fix Problem, Strippit Installed Mechanical "Band-Aid" Catch-Ring which was suppose to Collect Fluid Drips and Pipe them back to Tank through lower Black-Tube in Photo.
Look at Gap at Top of QRV-Valve and Bottom
of Valve on this 1000R. Strippit went Cheap on
All R-Machines and used a Simple Manual or Semi-Auto Grease System instead of their Old Excellent Earlier Pressure Oil Lube System on Crankshaft Bearings. Grease System did NOT work worth a Crap & allowes Bearings to Wear-Out. Have seen Machines with 3/8" (.375") of Bearing Slop. New Machines have about .008" Bearing Clearance. Crankshaft Flops Around with Every Punch Damageing Clutch-Brake Seals & Internal Parts & QRV-Valve. Eventually Pitman Breaks. For Thousands of Dollars you Rebuild Press-Drive & start over again.
This Customer added Orange RTV-Silicon everywhere, as if that would help.
We Stock
New #802501-000
New-Style
QRV Rotary-Valve
which is a
Direct Replacement
for the Old-Style Valve
which is
Not Made Anymore.
Grinding Wheels
Sold!

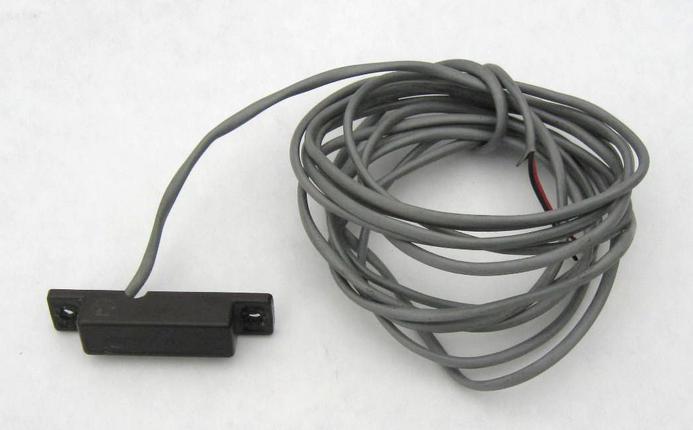

Magnetic Limit Switches
In the 1980's & 1990's, Strippit used Magnetic Limit Switches on most Machines for
X & Y & T-Axis Slow-Down, Zero, and Over-Travel Switch Functions. Sometimes
on Tool Doors also. Most of these Switches were 1 of the following 3 Part Numbers.
They are All the Same Switch, Normally-Open But Held-Closed By Magnet,
with just Different Cable Lengths;
#19149-000 Normally-Open Switch with 3 Foot Cable
#19146-000 Normally-Open Switch with 9 Foot Cable
#800435-000 Normally-Open Switch with 16 Foot Cable
We Stock the
#800435-000 Normally-Open Limit Switch, Used for All 3 Above Part Numbers.
-------------------------------------------------------------------------------------------------------------------------
There is also 1 other Odd Magnetic Limit Switch Strippit used on Many Machines that Used Fanuc GN6 Control. This is a Normally-Closed But Held-Open By Magnet Switch that was mainly used for the Turret-Zero Switch.
#801111-000 Normally-Closed Switch, The Opposite of #800435-000 !
We also Stock this #801111-000 Normally-Closed Switch.
Note, All Our Switches also Come-With The Matching #19147-000 Magnet!
I/O Modules
Many Strippit Machines using Fanuc CNC Controls used Various I/O Modules.
Input-Modules are used to Isolate and Condition Machine Switch Signals going into Control. Modules would Typically be Marked "IDC24" or Similar.
Output-Modules are used by Control to Power Solenoid Valves and other External Devices. Modules would Typically be Marked "ODC24", "OAC24" or Similar.
We can Supply all of these Modules.
While the Strippit Part Number is Helpful, Strippit's Manuals often have Part Number Errors, so we Need You to
Read Numbers off of The Module to insure
that we Supply you Correct Module.
S-Machine Ballscrew Couplings
In 1990's, Strippit introduced the S-Machines. Some Models in this Class of Machine are; 1000S, 1000SX, 1000SXP, 1000SXP/30, 1250S, 1250SXP, 1250SXP/30, 1250M, 1250MH, 1250MXP/30, amongst others. Excellent Machines used a Keyless "Ring-Fetter" Coupling which worked well.
However, if it did get loose from Crashes, it could tear itself Apart before Operator would notice.
Strippit Engineering Stupidity did Not have "Limit" Switches on Ends of X & Y Axis of S-Machines, so you Could "Crash" Ballscrew Hard into End of X or Y Carriage under some circumstances!
Rumor has-it that Strippit did not want to Pay-For another I/O Board in the Fanuc Control, so they Just "Eliminated" Axis Protection that had been considered Necessary for the prior 30 years!
If you have a Loose, Broken, Falling-Apart Ballscrew Coupling causing Tolerance Problems, or Worse, Replace it with Our Keyless-Coupling, which has 3 Advantages;
1 -- It does Not Cost Strippit's Normal "All Of Your Money and Your Arm & Leg" Pricing.
2 -- It has a Higher Tork-Rating than Original Coupling, making it More Durable.
3 -- It Very-Easily Clamps onto Motor & Ballscrew Shafts, even if Shafts are "Less than Perfect" from Damage caused by Old Coupling. Just Clean-Up any Burrs & Rough-Spots on Shafts with a Flat-File, Slide Coupling On Shafts, Center Coupling Between Shafts, and Tighten just 1-Screw on Lock-Collar at each end, and you are Done. Very Quick & Easy to Install! No Bazillion Strippit-Type Coupling Parts to Assemble! No Keys to Fit & Install, or to get Loose.
To make Sure you get Correct Coupling, Measure Both Your Motor & Ballscrew Shafts.
Most of these Machines have 1.375" Fanuc Motor-Shaft and .750" Ballscrew-Shaft Diameters.
Custom Couplings
We also Design and Manufacture Custom Couplings
for Any Strippit Machine,
and for
Any Other Machine Tool also!
Simply Provide;
--- Both End-Shaft Sizes.
--- Motor Stall-Tork Rating,
Read it off of the Motor I.D. Plate.
--- Custom Couplings take 3 to 4
Weeks to Manufacture, so Order
your New Coupling Before Your
Old Coupling Fails Completely!

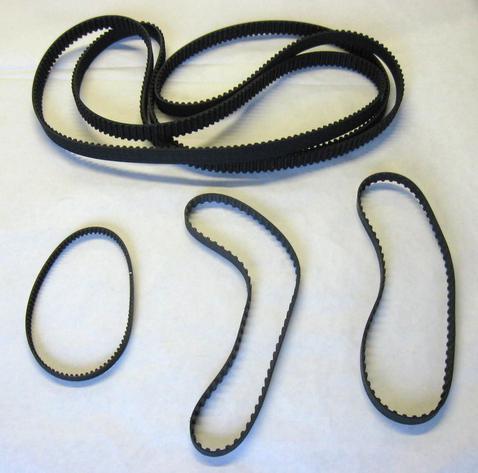

Tooth-Belts
#803402-000 R-Machine
Turret Drive Belt
#802038-000 Auto-Index
Rotary Limit-Switch Belt
#801664-000 Auto-Index
Drive Belt for FC1000/3,
S-Machines, M-Machines
#803445-000 Auto-Index
Drive Belt for R-Machines
FUJI Electric
Twin-Transistor
Power-Module
#EVK31-050A
50 Amp. 500 Volt
Modules are used in some Fanuc & General Numeric Servo Drives as well as many other applications.
These are NEW
Un-Used Old-Stock.

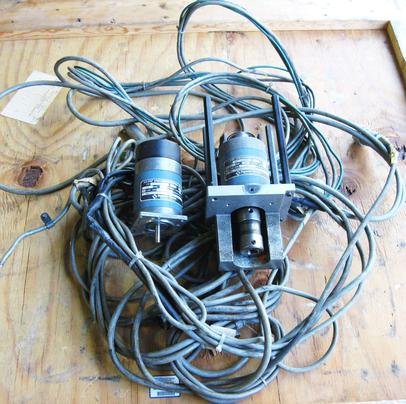

Strippit "AG" Autogage Control System.
18/30AG and 30/30AG Strippit Single-Punch Machines used this Earlix Control System. We Pulled this Control and 2 Stepper Motors off of a Damaged Machine.
As Earlix Co. is Out-Of-Business you should Buy this System so that you have Spare Repair Parts to Repair Your Machine.
Fanuc Servo-Motor
R & XP Machine Ballscrew Couplings
Over 90% of R & XP Machines used Strippit's Crappy CNC Controls based on Apple-MAC or
IBM-PC Personal Computers. Strippit did offer, as Extra Cost Option, a Industrial Quality Fanuc CNC Control & Servo-Drives & Servo-Motors, but few were sold as Machine Buyers went Cheap.
Congratulate yourself if you were smart enough to have bought your Machine with Fanuc Control.
But Strippit Stupidly used the same Crappy Coupling Type that will fall apart eventually.
Our Coupling Retrofit show in Above Photos will Not fit, as the Fanuc Motors used had
Odd Tapered-Shafts. To Compensate for this, Strippit Manufactured a 1.000" Outside Diameter Adapter Bushing that Fit Over Motor Tapered-Shaft and which also had a Lock-Nut on end of shaft.
We now offer, a Custom Coupling Retrofit for these Fanuc Control Machines that fits the same
.718" Ballscrew-End and also fits over the 1.000" Strippit Adapter-Bushing-End, which is retained.
See the 2 Fanuc Coupling Photos Below.
There are Many Misprint-Mistakes in Strippit's Part Manuals.
So to make Sure you get Correct Coupling, Measure Both Your Motor & Ballscrew Shafts!
Sold!
I have In-Stock,
and
For-Sale
1 Good-Used
Strippit
#85010-000
Tool-Sharpener Machine
I have Personally taken apart
and Cleaned the
Feed-Mechanism and the
Tool-Chuck
so they Both
work Smoothly.
It has a Good
Grind-Wheel
Installed
and has the
Chuck-Key.
I Rarely have these For-Sale
so if you want a Good Strippit
Tool-Sharpener
Act-Fast
as I only have
this 1!
